Laminated BENGglss: safe, quiet, and well insulated

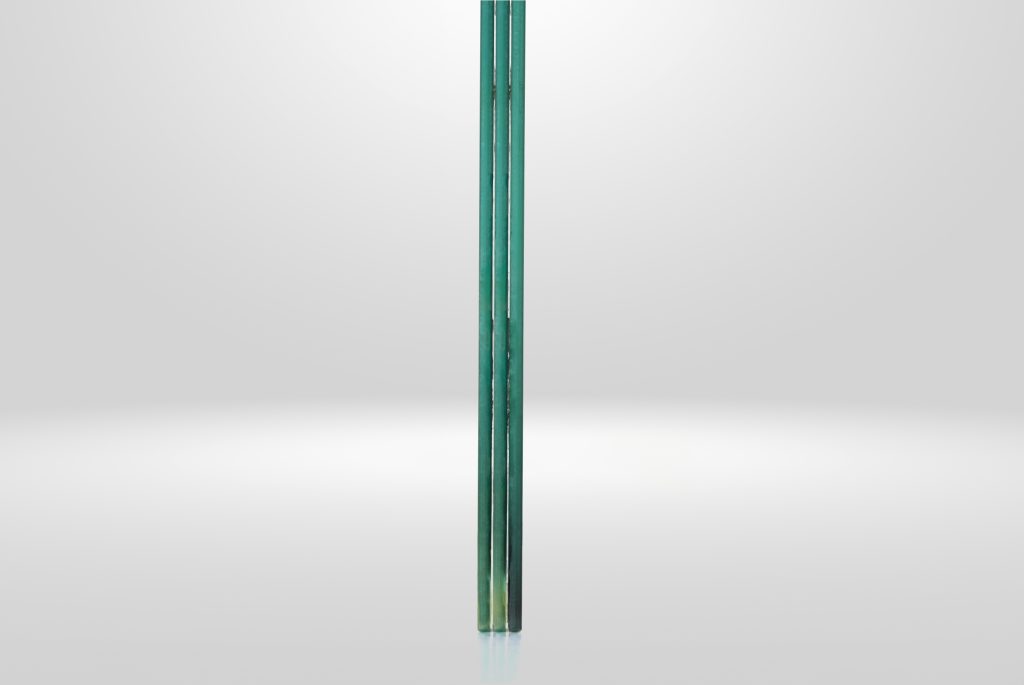

Standard BENGglas is already double-sided injury-safe. BENGglas in a laminated version consists of standard BENGglas with an extra pane, connected by a strong film (EVA, PVB, or SGP) that holds the glass together in case of breakage. This provides more safety, extra possibilities, and more comfort.
The benefits at a glance:
- Burglar-resistant (class P2A / P4A)
- Fall-through safe (1B1) – perfect for roof glazing or height differences
- Quiet living – from 39 dB sound insulation
- Injury-safe – no loose shards in case of breakage
- Superior insulation – U-value from 0.35
- Slim construction – from just 13.06 mm
- Up to 10 years factory warranty
Are you looking for a specific application?
Whether you choose an extra pane of monument glass or patterned glass, or want to add bulletproof or heavy burglar-resistant properties – each basic type of BENGglas is fully customizable to your wishes.
Are you looking for BENGglas with a strong distortion for old monuments (‘drawn glass’)? Then choose BENGglas Monu Restover.

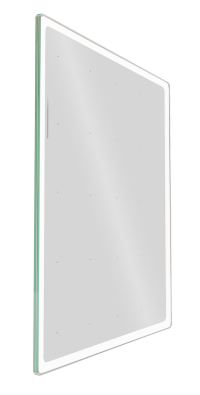

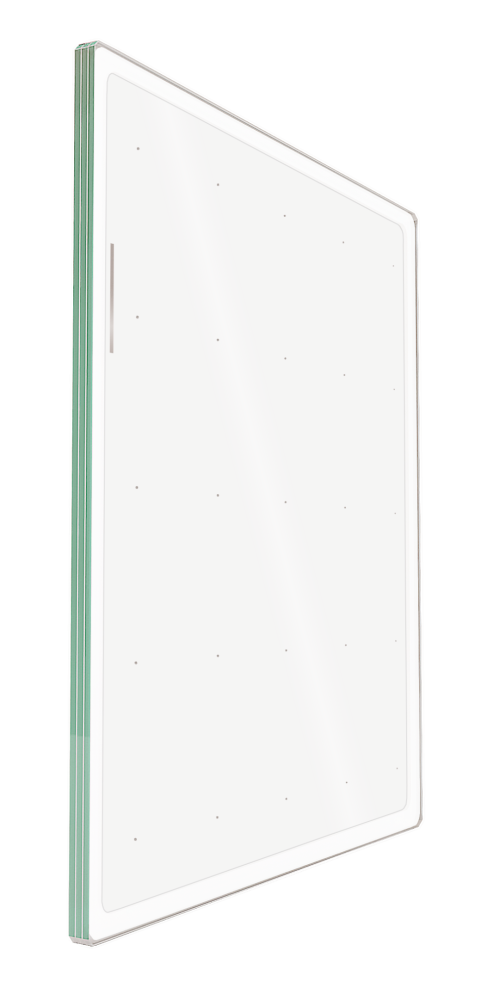

Recommended products
Find a certified installer
BENGglas has an extensive network of over 150 certified installers across Europe, specializing in vacuum glass installations. This way, you’re always assured of a professional close to home! Want to get the best deal easily? Fill out our quote form and receive three competitive offers from the three nearest BENGglas dealers in your area!
Do you choose laminated glass? Then you get just that little bit extra.
Laminated BENGglass offers enormous possibilities: you can choose from three types of films (EVA, PVB, or SentryGlas Plus) and an almost unlimited range of counterpanes.
All types of films ensure that no shards come loose in the event of breakage. But it doesn't stop there – you benefit from many more smart advantages.
Each type of film has unique properties, giving the pane – in addition to the superior insulation value of BENGglass – many extras, such as:
- fall-through safety – safe at height, for all building functions
- burglary resistance – not easy to get through
- extra sound insulation – from -36 dB to -39 dB or even more, audibly quieter
- better UV protection – your furniture stays beautiful longer
- colors and patterned glass types – your pane completely changes appearance
You can completely determine how you want to assemble your laminated pane. Consider patterned glass for a unique appearance, or extra films for maximum safety. Let us know what you are looking for – we are happy to think along with you.
EVA, PVB of SGP – each application requires a different layer
At BENGglas, you can choose from three different films between the glass layers: EVA, PVB, and SGP. They all ensure that the glass remains neatly together in case of breakage, but each type has its own advantages.
- EVA (Ethylene Vinyl Acetate) is versatile, very moisture-resistant, clear, and suitable for most standard applications
- PVB (Polyvinyl butyral) is considered the industry standard in construction and within the NEN standards
- PVB SoundControl this variant of standard PVB has extra soundproofing properties
- SGP (SentryGlas Plus) is the ultimate option: SGP can be up to five times stronger and up to 100 times stiffer than PVB, allowing for thinner glass constructions that still meet the same safety standards. SGP is also more moisture-resistant and extremely clear.
We are happy to help you choose which film suits your project.
Why choose laminated BENG glass?
- Fall-through safety
Laminated glass remains intact even when it breaks: the shards adhere to the interlayer. Additionally, the films make the pane stiffer and tougher, ensuring that situations with fall-through risk are safely resolved. - Burglar prevention
Due to its sturdy construction, laminated glass is difficult to break. This makes it much harder for burglars to quickly gain entry. Extra safe, therefore, for your home or business. - From noisy street to quiet space
Thanks to the extra sound-dampening interlayer, laminated BENG glass achieves a sound reduction of no less than 39 dB (or even more). Perfect in a busy city or for those who simply enjoy peace and quiet. - Extra protection against UV radiation
Bright sun? No problem. Laminated glass blocks a large portion of harmful UV rays, keeping your furniture, floors, and curtains beautiful for longer.
Where do you use laminated glass?
Laminated vacuum glass is used in places where, in addition to insulation, extra safety, soundproofing, or structural strength is important. Think of glass at height, roof glazing, or in situations where there is a high noise load.
In many cases, it is even mandatory, for example, if there is a risk of falling through or in roofs. The film between the glass layers ensures that the glass does not shatter into sharp shards upon breakage – making it safer and more comfortable for daily use.
- Facades
Standard BENG glass is double-sided safety glass: it shatters into small granules upon breakage. In facades with height differences, laminated glass is mandatory to avoid the risk of falling through.
Thanks to the built-in UV filter in PVB film, furniture and floors discolor less quickly. - Roof glazing

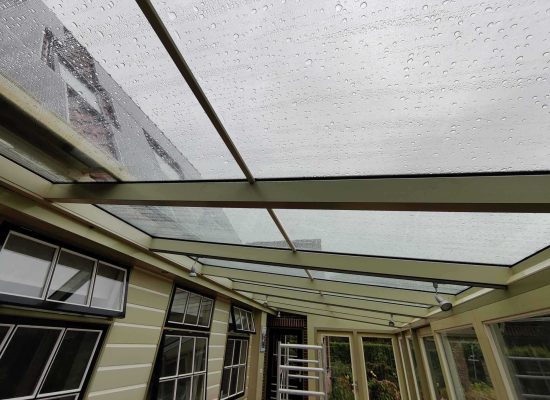

With glass above your head, safety is not a choice but a requirement. laminated vacuum glass is the standard here: it stays together upon breakage and prevents shards from falling down. Daylight still comes in, while the UV filter prevents discoloration of floors and furniture. - Living near noise? More peace inside?
Noises from (air) traffic, neighbors, or a schoolyard can be disturbing. With acoustically laminated glass, the noise level noticeably decreases. A special interlayer in the glass absorbs some of the sound vibrations – ideal for bedrooms, workspaces, or simply more peace in the living room.
You determine how the window is constructed
How you want to assemble your laminated window is entirely up to you. We are happy to think along with you to come to the right solution.
Looking for a monumental appearance?
Then choose BENGglas Monu Restover, with an extra Restover pane – the so-called 'drawn' glass.
Replacing your old patterned glass with modern insulation glass?
No problem: we can provide the pane with a counter pane with the same patterned glass design, so the authentic appearance is preserved.
Prefer no view in?
In bathrooms, for example, you want light but no view. We then combine the BENGglas with matte film or place a matte pane against it.
Contact us – we are happy to provide a customized quote
Extra layers, extra security

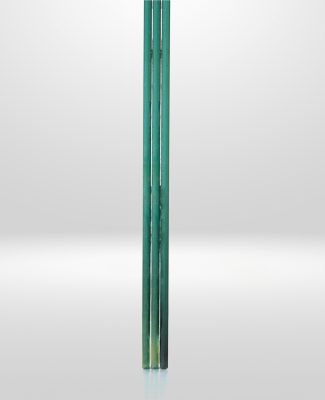

BENGglas in laminated form consists of an extra pane with one or more films (EVA, PVB, or SGP) in between. The film ensures that the glass does not fall apart upon breaking but stays neatly in place. This safety feature makes laminated vacuum glass ideal for roof glazing, high windows, and applications in public spaces.
Additionally, the film gives the glass extra properties: it becomes stiffer and less easy to break through, providing a delay against burglary and allowing you to sit inside with peace of mind.
At BENGglas, we combine that safety with top insulation and soundproofing.
From -36 dB to -39 dB or more: noticeable difference
Laminated glass not only provides safety but also silence.
The foil layers dampen sound vibrations – ideal for those living on a busy road, or near a railway line, airport, or school. While non-laminated vacuum glass already offers up to 36 dB sound reduction, laminated vacuum glass goes a step further with damping starting at 39 dB. That difference seems small, but you'll notice it immediately: less traffic noise and less ambient noise.
In some cases, we apply acoustic PVB foils and thicker counterpanes, resulting in even better sound reduction.
The result: a quieter home, fewer stimuli, and more living comfort.
Frequently asked questions
What exactly is laminated vacuum glass?
Laminated BENG glass offers tremendous possibilities: you can choose from three types of films (EVA, PVB or SentryGlas Plus) and a virtually unlimited range of counter glasses.
All film types ensure that no shards will come loose if broken. But it doesn't stop there - you benefit from many more smart advantages. Each film type has unique properties, giving the window - in addition to the superior insulation value of BENG glass - many extras, such as:
- fall-through safety - well safe at height, for all building functions
- Break-in retardation -not easy to get through
- extra sound insulation - from -36 dB to -39 dB or more, audibly quieter
- Better UV protection - your furniture stays nice longer
- colors and patterned glass - your window will completely change appearance
How you want to put together your laminated window is completely up to you. Think of patterned glass for a unique look, or additional films for maximum safety. Let us know what you are looking for - and we will be happy to think along with you.
When do I choose laminated vacuum glass?
Laminated vacuum glass is used in places where extra safety, soundproofing or structural strength is important in addition to insulation. Think of glass at height, roof glazing or in situations where you have high noise levels.
In many cases it is even mandatory, for example if there is a risk of falling through or in roofs. The film between the layers of glass ensures that the glass does not break into sharp shards when broken - making it safer and more comfortable in everyday use.
- Facades
As standard, BENG glass is injury-resistant on both sides: when broken, it disintegrates into small grains. In facades with height differences, laminated glass is mandatory, avoiding the risk of falling through.
Thanks to the built-in UV filter in PVB film, furniture and floors are less likely to discolor. - Roof glazing
With overhead glass, safety is not a choice but a requirement. Laminated vacuum glass is the standard here: when broken, it stays together and prevents shards from falling down. Daylight comes in as normal, while the UV filter prevents discoloration of floors and furniture. - Living past crowds? More quiet indoors?
Noise from (air) traffic, neighbors or a schoolyard can be distracting. With acoustic laminated glass, the noise level goes down noticeably. A special interlayer in the glass absorbs some of the sound vibrations - ideal for bedrooms, work spaces or simply more peace and quiet in the living room.
Will laminated vacuum glass fit into my existing window frames?
In most cases, yes. Laminated BENG glass is available from as little as 13.06 mm thick, which is thinner than triple glazing. Having doubts about whether it will fit? Then we can look with you or engage an authorized dealer in your area.
What is the difference between EVA, PVB and SGP in laminated glass?
With BENG glass, you can choose from three different films between the glass layers: EVA, PVB and SGP. They all ensure that the glass stays together neatly when broken, but each type has its own advantages.
- EVA (Ethylene Vinyl Acetate) is versatile, highly resistant to moisture. clear and suitable for most standard applications
- PVB (Polyvinyl butyral) is considered the industry standard in construction and within NEN standards
- PVB SoundControl This variant of standard PVB has additional soundproof properties
- SGP (SentryGlas Plus) is the ultimate option: SGP can be up to five times stronger and up to 100 times stiffer than PVB, allowing thinner glass constructions that still meet the same safety standards. SGP is also more resistant to moisture and extremely clear.
We'd be happy to help you choose which film is right for your project.
References
Are you curious where BENGglas has already been applied? Check out our references and discover the power of vacuum glass in practice. From carefully renovated monuments with special monument glass, to sustainable new construction and modern office buildings – BENGglas makes a difference for a greener future.
Get inspired and discover what we can do for your project!

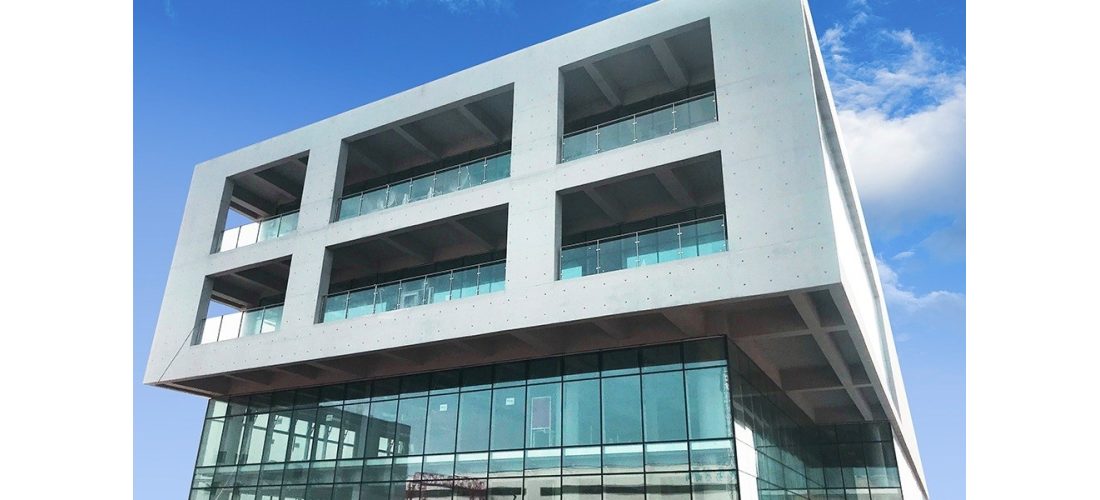

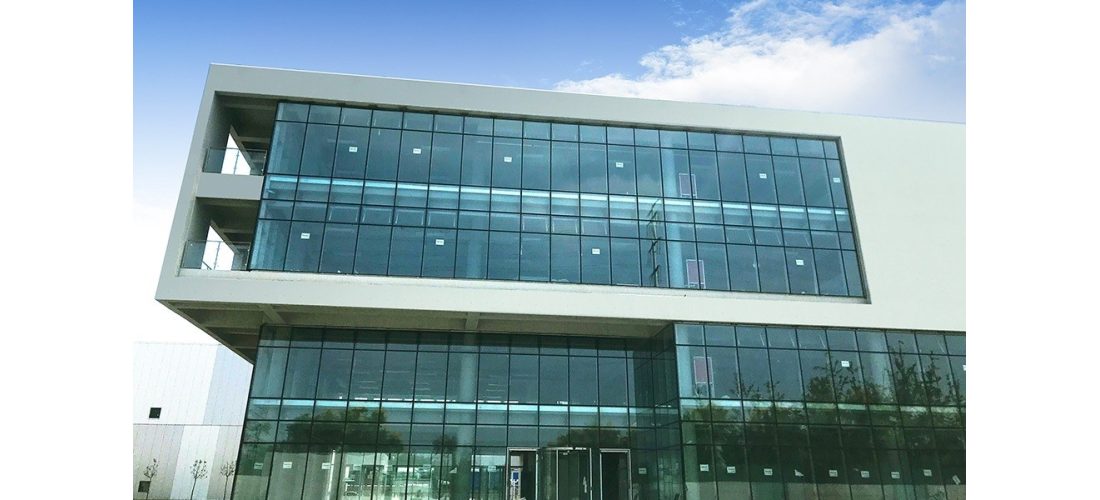

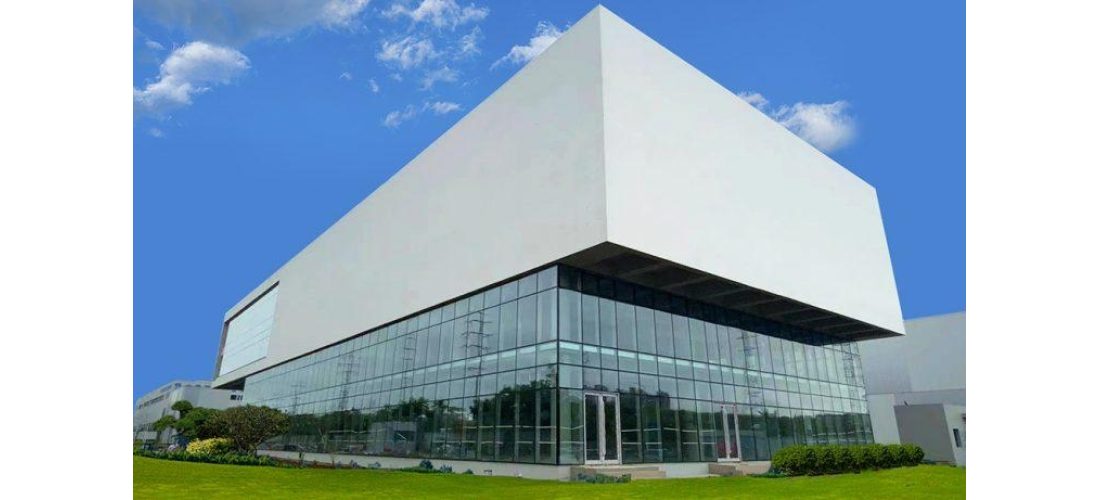

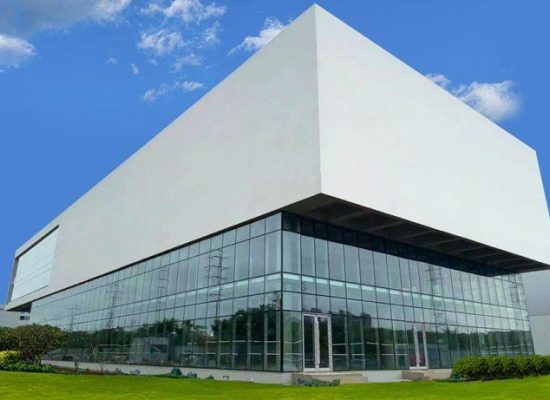

Sustainability of modern office building
