BENGglas PLUS

BENGglas PLUS is ultra-thin vacuum glass, available from 6.3 mm. This means that BENGglas PLUS almost always fits into existing window frames. Even where single glazing has been installed.

Advantages of BENGglas PLUS

Icon_fully tempered_insulating glass_vacuum glass_hr insulating glass_insulating glass hr

Available from 6.3 mm

Icon_fully tempered_insulating glass_vacuum glass_hr insulating glass_insulating glass hr

15 year warranty

Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

One of the best insulation values ​​on the market: U=0.45

Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

Fits into existing window frames

Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

Up to 6 x fewer spacers

Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

Tempered safety glass without the risk of thermal breakage

Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

For quiet living (-36 dB)

Icon_fully tempered_insulating glass_vacuum glass_hr insulating glass_insulating glass hr

Natural light

BENGglas PLUS_insulating glass_Vacuum glass

90° EDGE FINISH

With BENGglas PLUS you are guaranteed a very sleek 90° edge finish. Thanks to the slim sealing edge of only 11 mm, BENGglas PLUS can easily be concealed in the window frames.

Due to the slim profile from only 6.3 mm thick, you can save on additional material costs by mounting the glass in the existing window frames. This way you always maintain the authentic appearance of your home or building.

Technical drawing type BENGglas PLUS
BENGglas+_side_insulating glass_vacuum glass_double glazing

UNPARALLELED INSULATION PERFORMANCE

BENGglas PLUS achieves very good insulation values ​​compared to regular insulating glass or other vacuum glass brands (from U=0.45). The vacuum remains intact even after 25 years, while traditional insulating glass loses its insulating value over time due to micro cracks in the edges, causing the insulating gases to escape.

With BENGglas PLUS you benefit from a sustainable and effective return that far exceeds the competition.



BENGglas PLUS_insulating glass_Vacuum glass

SPECIFICATIONS

  • U-value: 0.45 – 0.55
  • Available glass thicknesses: 6.3 mm, 8.3 mm, 10.3 mm and 12.3 mm
  • Tempered as standard, injury-resistant without thermal breakage.
  • Visible absorption point
  • Sealing edge: 11 mm
  • Maximum dimensions: 2,000 x 3,000 mm
  • Minimum size: 300 x 300 mm
  • Up to 6 x fewer spacers than regular vacuum glass
Download the technical drawing

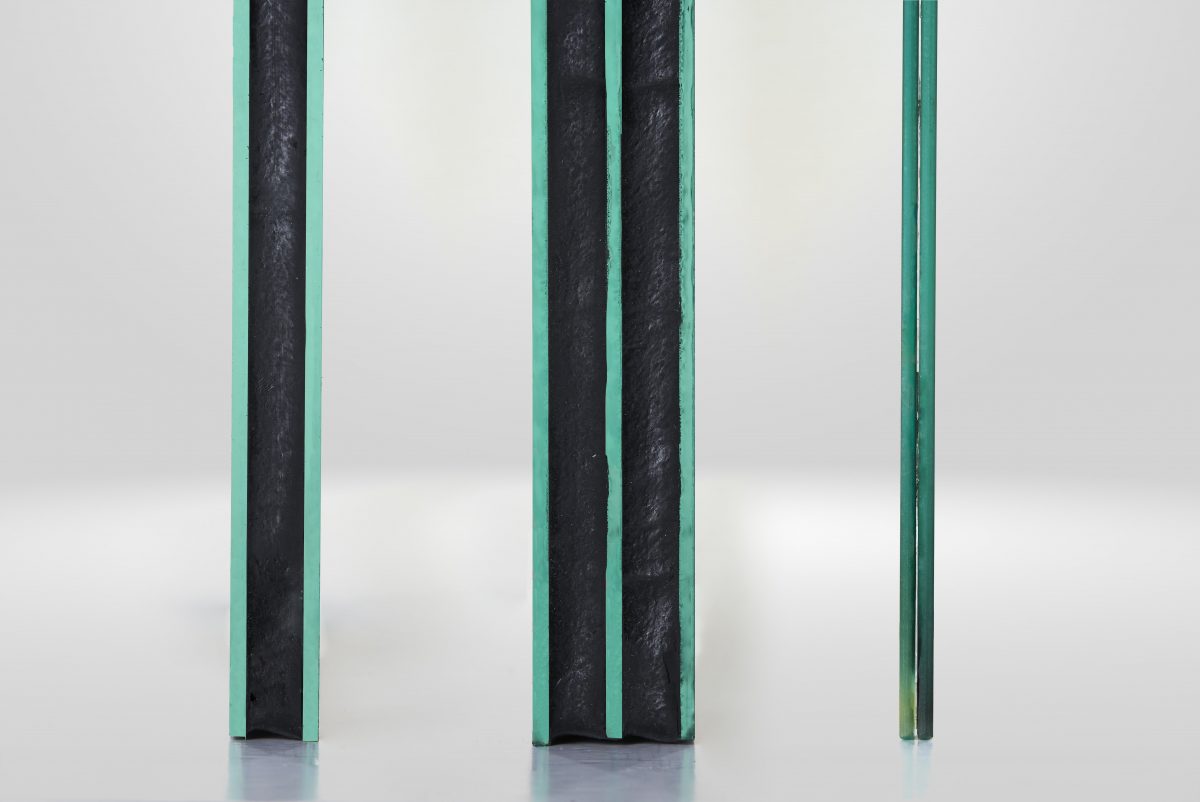

BENGglas® VS. OTHER INSULATING GLASS

The power of BENGglas™ lies in its insulation performance packed in an ultra-thin profile of only 6.3 mm thick. This makes the glass by far thinner and better insulating value than any other type of insulating glass. This means that the glass even fits in single-glazed frames, where triple and HR++ glass cannot provide a solution without having to replace the entire frame.

Download the brochure

Single glass
HR++ glass
Triple glass
BENGglas PLUS
Insulation value (U-value)
5,80
1,10
0,80
0,45 - 0,55
Noise reduction (dB)
29
31
33
36
Degradation insulation value
na
Yes
Yes
No
Thickness (mm)
4
21
38
6,3

HIGH EFFICIENCY INSULATING GLASS

Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

No degradation of the insulation value

In contrast to regular insulating glass, where the insulation value (U-value) degrades, the insulation value of BENGglas PLUS remains stable even after 25 years. This results in a steadily increasing return over the years.

READ MORE
Icon_isolation glass_vacuum glass_hr insulation glass_isolation glass hr

Save more from day one

BENGglas PLUS has a superior insulation value compared to other types of insulating glass. This way you save considerably more on your energy bill from day one.

READ MORE
Icon_fully tempered_insulating glass_vacuum glass_hr insulating glass_insulating glass hr

Higher home value due to a better energy label

The investment in the glass goes directly into the value of your home or building because you immediately benefit from an improved energy label.

READ MORE

Request a quote immediately!

Request a quote and we will forward it to a dealer in your area, that's easy. If you have any questions, you can also contact us, we are ready to help you.
