BE NGglas+
Optimal insulation and 90 ° edge finish



BENGglas + distinguishes itself from other types BENGglas due to its advanced 90° edge finish. The number of spacers is fewer than with BENGglas BASIC , so you benefit from unparalleled insulation performance (U=0.47) and an optically beautiful result.

BENGglas + can only be ordered on a project basis from 100 m² in repetitive sizes.

BENGglas _plus_Vacuum glass_insulation_U-value: 0.45

90° EDGE FINISH

With BENGglas + you are guaranteed a very sleek 90° edge finish. Thanks to the slim sealing edge of only 11 mm, BENGglas + can easily be concealed in the window frames. Only the absorption point will be slightly visible above the frame.

Thanks to the slim profile of only 8.3 mm thick, you can save on additional material costs by mounting the glass in the existing window frames. This way you always maintain the authentic appearance of your home or building.

Technical drawing type BENGglas +

UNPARALLELED INSULATION PERFORMANCE

BENGglas + achieves unparalleled insulation performance compared to regular insulating glass (HR++: 1.10, triple glass: 0.80) or other vacuum glass brands (0.70). The vacuum remains intact even after 25 years, while traditional insulating glass loses its insulating value over time due to micro cracks in the edges, causing the insulating gases to escape.

With BENGglas + you benefit from a sustainable and effective return that far exceeds the competition.



BENGglas +

SPECIFICATIONS

  • U-value: 0.45
  • Available glass thicknesses: 8.3 – 10.3 and 12.3 mm
  • Tempered as standard, injury-resistant without thermal breakage.
  • Visible absorption point
  • Sealing edge: 11 mm
  • Maximum dimensions: 1,650 x 2,800 mm
  • Minimum size: 300 x 300 mm
  • Up to 6 x fewer spacers than regular vacuum glass

Please note: can only be ordered for projects from 100 m² in repetitive sizes.

Download the technical drawing



WHY BENGglas +





BENGglas + is the only type within the BENGglas range with a sleek 90° edge finish and is now available in large sizes of no less than 1,650 by 2,800 mm.



Advantages BENGglas +

Tight 90 degree edge finish & slim sealing edge

15 year warranty

One of the best insulation values ​​on the market: 0.45

Fits into existing window frames

Up to 6 x fewer spacers

Tempered safety glass without the risk of thermal breakage

For quiet living (-36 dB)

Natural light

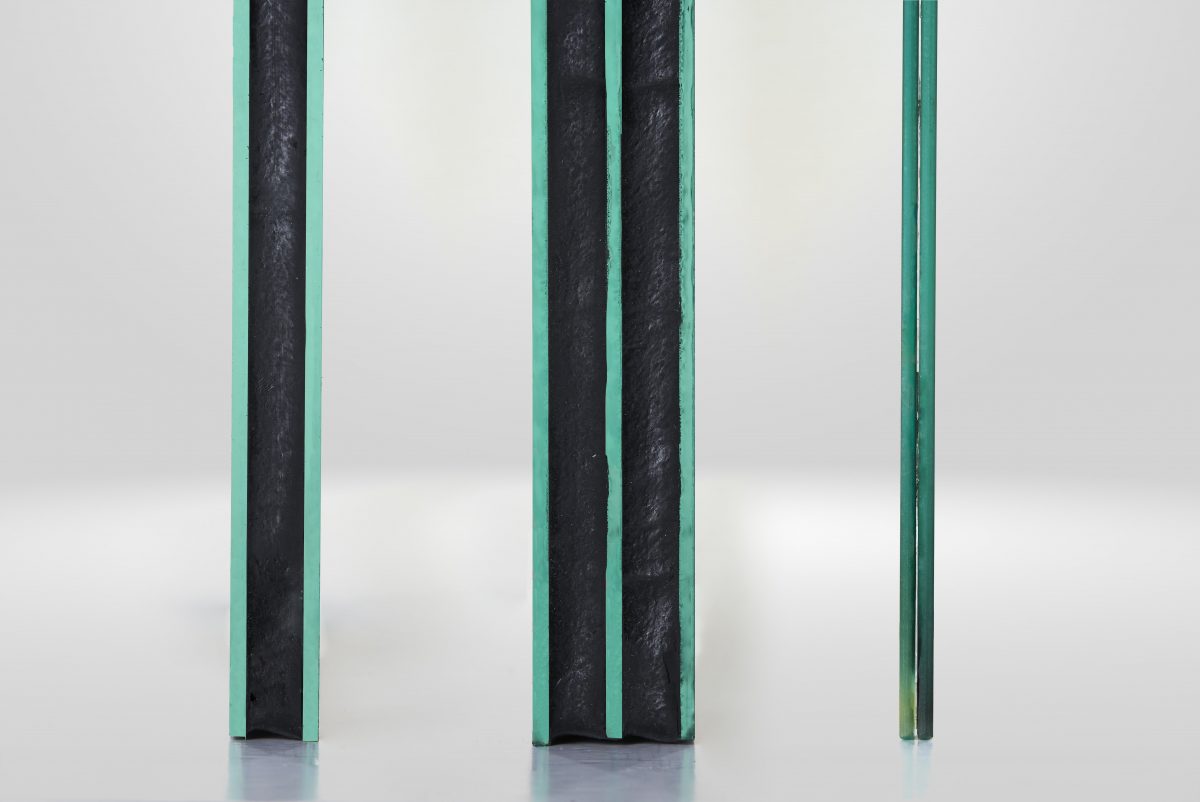

BENGglas VS. OTHER INSULATING GLASS





The power of BENGglas lies in its unparalleled insulation performance packaged in an ultra-thin profile of only 8.3 mm thick. This makes the glass by far thinner and better insulating than any other type of insulating glass. This means that the glass even fits in single-glazed frames, where triple and HR++ glass cannot provide a solution without having to replace the entire frame.



Download the brochure

Single glass
HR++ glass
Triple glass
BENGglas +
Insulation value
5.80
1,10
0,80
0,45
Noise reduction dB
29
31
33
36
Degradation insulation value
na
Yes
Yes
No
Thickness
4
21
38
8,3

High efficiency vacuum glass

No degradation of the insulation value

In contrast to regular insulating glass, where the insulation value (U-value) degrades, the insulation value of BENGglas + remains stable even after 25 years. This results in a steadily increasing return over the years.

READ MORE

Save more from day one

BENGglas + has a superior insulation value compared to other types of insulating glass. This way you save considerably more on your energy bill from day one.

READ MORE

Higher home value due to a better energy label.

The investment in the glass goes directly into the value of your home or building because you immediately benefit from an improved energy label.

READ MORE
